When your business can't stop and downtime can be measured in dollars, a UPS (Uninterruptable Power Source) provides protection against some of the leading causes of ultrasound downtime, data loss and hardware damage.

Emergency power back up systems make it possible to have continued access to electrical service during power outages. These systems are typically based either on fossil-fuel-powered generators or on battery-based storage systems. For emergency power back up power during typical power outages, battery-based systems represent a simple, cost-effective solution.

Wave Imaging Solutions offers a complete line of ultrasound power back up systems matched to each ultrasound for seamless service. Provide instantaneous or near-instantaneous protection from power interruptions.

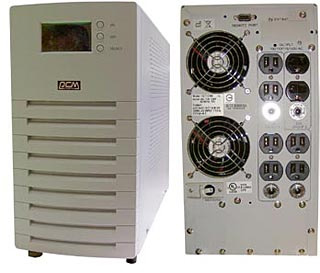

• True On-line, Pure Sine Wave, UPS
• Capacity: 2000VA/1400W
• Input Voltage Range: 100V/110V/115V/120V +/- 25% at line input
• Output Voltage: 100V/110V/115V/120V +/- 2% at line input
• Input Frequency: 50 or 60 Hz+/-5% (auto sensing)
• Input Connection: Built-in NEMA5-20P
• Outlets: 2 NEMA5-20R (all for battery backup); 6 NEMA5-15R (all for battery backup)
• Alarm: Backup, Low Battery, Overload
• AVR: Yes
• Battery: Hot Swappable
• Battery Recharge Time: 8 hours (90% of full capacity)
• Circuit Breaker Protection: Yes
• Cold Star: Yes
• Interface Port: RS-232
• LCD Display: Yes
• Management Software: Yes
• SNMP Card: Optional
• Transfer time: 0 sec
• Dimension (W x H x D): 7.6 x 15.2 x 18.1 (in)

• Line-interactive, Simulated Sine Wave, UPS
• Capacity: 1500VA/900W
• Input Voltage Range: 100V/110V/115V/120V +/- 25% at line input
• Output Voltage: 100V/110V/115V/120V +/- 5% at line input
• Input Frequency: 50 or 60 Hz+/-5% (auto sensing)
• Input Connection: NEMA5-15P
• Outlets: 5 NEMA5-15R (all for battery backup)
• Alarm: Backup, Low Battery, Overload
• AVR: Yes
• Battery: Hot Swappable
• Battery Recharge Time: 6 hours (90% of full capacity)
• Circuit Breaker Protection: Yes
• Cold Star: Yes
• Interface Port: RS-232
• Management Software: Yes
• Protection: RJ11, RJ45
• Dimension (W x H x D): 5.1 x 7.5 x 15 (in)

• Line-interactive, Simulated Sine Wave, UPS
• Capacity: 1000VA/600W
• Input Voltage Range: 100V/110V/115V/120V +/- 25% at line input
• Output Voltage: 100V/110V/115V/120V +/- 5% at line input
• Input Frequency: 50 or 60 Hz+/-5% (auto sensing)
• Input Connection: NEMA5-15P
• Outlets: 6 NEMA5-15R (4 battery backup + 2 surge protection)
• Alarm: Backup, Low Battery, Overload
• AVR: Yes
• Battery: Hot Swappable
• Battery Recharge Time: 6 hours (90% of full capacity)
• Circuit Breaker Protection: Yes
• Cold Star: Yes
• Internet Protection: RJ11, RJ45
• Interface Port: USB port
• Management Software: Yes
• Dimension: (W x H x D): 5.1 x 7.5 x 15 (in)

Please, contact us today or call 866-975-3316 to purchase a UPS back up system for your Ultrasound Machine.
