Product Information:

Manufacturer: GE

Description:

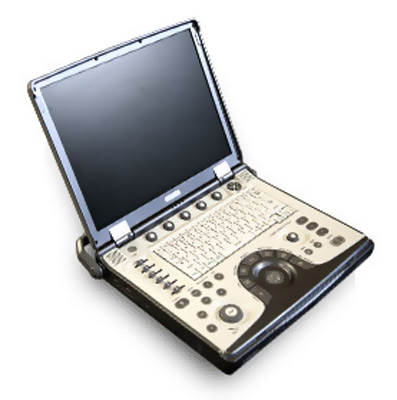

The GE LOGIQ e is a high performance multipurpose color compact imaging system designed for cardiac, abdominal, obstetrics, gynecology, vascular, musculoskeletal, small parts, pediatric, neonatal and intraoperative applications.

The powerful LOGIQ e defies previously held beliefs about portable ultrasound, that you have to compromise image quality or functionality. The LOGIQ e makes it possible to get clear, real-time images at the point of care - wherever you and your patient may be.

Performance:

• TruScanTM Architecture - GE Helathcare's exclusive, software-intensive ultrasound imaging platform gives you unsurpassed computational power, image-manipulation capability, workflow flexibility and product upgradeability.
• TruAccess - is the new, GE-exclusive, raw-data processing technology that will change the future of ultrasound imaging. By accessing raw data, TruAccess applies live scanning techniques to stored image data. This maintains excellent image quality and ensures unsurpassed image management.
• SmartScan - utilizes new advances in operating algorithms and system operations to improve image acquisition and patient throughput while increasing diagnostic confidence and exam consistency.
• ComfortScan - our most advanced ergonomic design ever, helps maximize productivity and simplify every exam you perform. The LOGIQ e has increased flexibility and mobility for all scanning conditions.
• High Resolution 15 inch Color LCD
• 40GB Hard Drive
• Multiple display modes: B, M, CFM, PDI, PDW

Capabilities:

OB/GYN, Cardiac, Vascular, Neonatal , Abdominal, Urology, Small Parts, Pediatrics, Intraoperative

Available Transducers:

12L-RS, 8L-RS, i12L-RS, 4C-RS, 8C-RS, e8c-RS, 3S-RS

Available Parts:

(Listed by Manufacturer Part Number)

	Probes:	Description:
	H40402LN	E8C-RS Probe
	H40402LS	8C-RS Probe
	H40402LT	8L-RS Probe (General Imaging Only)
	H40402LW	i12L-RS Probe
	H4000PD	3S-RS Probe
	H4000SR	4C-RS Probe
	H40402LY	12L-RS Probe
	H40442LL	9L-RS Probe
	H40412LP	T739-RS Probe (General Imaging Only)
	H40402LJ	i739-RS Probe (General Imaging Only)

	Common Parts:	Description:
	2379846	Probe & Mux Assy.
	2409723	Operator Panel w/o ECG (Keyboard Assy)
	2410809	LCD Panel Kit
	2416155	BEP Service Kit
	2417221	External Battery Charger
	5182095	Isolation cart Australia/New Zealand class cable kits
	5183459	Battery pack for Ve BT07
	5183906	Security lock
	5195546	Isolation cart 250V T 5A Fuse for transformer
	5196783	AC/DC adapter with clamp filter
	199342	Keyboard Assembly for Ve BT07
	5199553	LCD Front cover for Vivid e BT07
	5199973	Keyboard Cover Assembly for Ve BT07
	5212061	LCD Back cover assy for Vivid e BT07
	5212340	Menu Panel Assembly for Vivid e BT07
	5224534	Keyboard PWA kits for Vivid e
	5234933	Handle Kits for Ve BT07
	5244918	LCD Service Assy for Ve BT07
	5251801	Twin LCD panel for Service
	5255230	Hard Disk without Program Assy
	5264324	Netgear wireless adapter WG111v2 installation kit
	066E3101	V7 AN KEYBOARD UNIVERSAL, ENGLISH
	2404903-2	TX64 PWA
	2404906	RX64 PWA
	2406733	TMST2TX PWA
	5124847-2	Twin CWD Assembly
	5124847-3	CWD PWA
	5145407	MPN:CMOS Battery_CMOS Battery
	5148768	Left Fan Assembly
	5148771	Probe Connector Assembly
	5151233-2	DVD-RW USA Kit
	5151234-2	DVD-RW EU Kit
	5151236	USB 3 pedal Foot Switch
	5155004	TWin Speaker kits
	5155166	LCD and Handle Hinge kits
	5155175	CPU module kits for Twin
	5159620	512MB DDR Memory
	5160471	Trackball Assembly
	066E0339	ATI FireGL V7200 256MB PCI-X DVI
	066E0523	HARD DISK 80GB SATA BEP4 HDD FRU
	066E0677	MO Drive 9.1 GB 5.25" Ext 1 E
	066E0677	MO Drive 9.1 GB 5.25" Ext
	066E0698	DVD DRIVE
	066E2301	V7 OP MAIN CONTROLLER BOARD
	066E2302	V7 OP LCD WITH CONTROLLER BOARD
	066E2311	V7 OP MAIN CONTROLLER BOARD VER.2
	066E2312	V7 OP LCD MODULE
	2354258-7	TR32 Board
	2355880-4	RFI Board
	2376515-2	Hard Disk Module w/o SW
	2378947-2	AC Adaptor (ROW)
	2378963-2	Internal Battery Pack
	2404028-7	BEP CMOS BATTERY
	2404652-5	TRACKBALL
	2406640-2	TMST PWA
	2410247-2	AC Distribution Assy 220-240V
	2415041-2	Front Wheels KIT
	2415042-2	Rear Wheels KIT
	2416318-2	Medical Grade 5V PS
	2416397-2	DC Power Supply LV and HV
	2417993-2	DVD-RW
	5147731-2	LCD Inverter Assembly
	5162038-3	Twin Charger Board and Cable kits
	5173403-3	Right Fan Assembly
	5174862-5	HDD with program Assy for Ve R4.0.4
	5177329-2	Isolation Cart (220V)
	5252489	NSK C4B01 AN Keyboard for Ve BT07
	FB200165	FEC-II
	FB200574	POWER, TX
	FB200991	IMP-2B
	FC200054	RFI
	FC200057	RX128-4
	FC200230	BACKPLANE
	FC200375	TX128-4, TX-BOARD FOR RFI
	FC200386	POWER, TX
	FC200386	POWER, TX (TXPS)
	FC200394	RFT1
	FC200459	TX128-5
	FC200805	PATIENT IO MODULE
	FC200817	BEP4 WITHOUT MO DRIVE
	FC200936	LCD MONITOR ASSEMBLY
	FD200041	POWER, DC
	FD200041	POWER SUPPLY DC
	S2354258-7	TR32 Board 1 E Same as Vivid i
	S2376515	Hard Disk Module w/o SW 1 N
	S2378963-3	Internal Battery Pack 1 N Same as used on Vivid i
	S2403248-4	DC/DC Module 1 N
	S2416155	BEP Service Kit 1 N Same as used on Vivid i
	S2418272-3	PI Board 1 N 1
	S2418295	RFI Board AM 1 N
	S2418521	Fan Module Assy. 1 N
	S2418523-2	VS6 Monitor 17" Arm Assy. 1 N Vivid S6 only
	S2418525-2	VS6 Monitor 17"] 1 N Vivid S6 only
	S2418592	PS Board VS6 1 N Vivid S6 only
	S2419681-4	Distribution Module (DIB) 1 N
	S2420671	Wheel Brack Locking 2 N
	S2420672	Wheel Swivel Locking 2 N
	S2421617	Key Cap Kit 1 N
	S2421618	KB A/N Keyboard 1 N
	S2421619	KB Trackball 1 N
	S2421620	KB TGC Slides 1 N

For additional informaton about this product, please call 866-975-3316 or fill out our contact form today!
