Product Information:

Manufacturer: GE

Description:

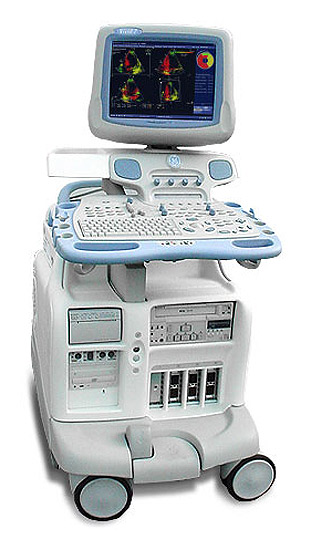

GE Vivid 7, a premier cardiovascular ultrasound system from GE Healthcare, expands on the strength of a powerful imaging platform to offer new, innovative technology of dimensional proportions.

The easy-to use Vivid 7 significantly increases clinical productivity with time-saving features and a software-based imaging platform that fully integrates the ultrasound data throughout the entire imaging chain - from acquisition and reconstruction to analysis and reporting - for faster, more complete echo exams.

The new GE Vivid 7 Ultra-Definition Clarity Control feature provides you with multiple 2D settings that reduce noise, while keeping edges smooth. It enables the personalization of images for 4D, cardiac and vascular imaging.

Performance:

• Full integration eliminates the need to perform two separate exams, i.e., first a standard 2D exam and then a separate live 3D exam, before analysis on a separate workstation. With the Vivid 7 Dimension, the single Multi-dimensional and 4D study can be analyzed on the system or the EchoPAC Dimension workstation, dramatically streamlining both acquisition and analysis of all echo exams.
• Online 4D renderings, performed in real-time during scanning, streamline exams and save time.
• DICOM connectivity with embedded raw data storage permits post-exam quantitative analyses on the Vivid 7 Dimension system or the EchoPAC Dimension workstation; whichever best fits your echo lab workflow.
• Seamless measurement -integration allows you to efficiently calculate ejection fraction and volumes from Tri-plane images gathered from the same heartbeat.
• Blood Flow Imaging (BFI) - new vascular imaging mode gives clinicians a better understanding and delineation of directional blood flow in vessels.
• Bull's Eye Report Formats and TSI Surface Mapping - communicate cardiac dyssynchrony in a visual display that should be more familiar to EP physicians.
• 4D Tissue Synchronization Imaging (TSI) - propels Tissue Velocity Imaging to the next level by taking three simultaneous planes - from a single heartbeat at high frame rates - to create a flexible, dynamic 4D model with quantitative measurements to better communicate cardiac dyssynchrony.
• Real-time 4D Imaging - provides more cardiac information to help clinicians better communicate the heart's structure and function.
• Stress-free stress echo with Bi-plane and Tri-plane imaging enables complete acquisition of all stress echo views from just two imaging windows.
• Real-Time Full Volume - constructs a complete 4D volume online during scanning, enabling you to see the information you are acquiring in real-time, for more complete and artifact-free depictions of the entire heart.

Capabilities:

Cardiac, Vascular, General Radiology

Available Transducers:

C358, C721, Curved Abdominal, 3S, 7S, 5S, 10S Sector Adult Heart and peds Heart, 10L, 7L, Linear Vascular, 6T TEE probe

Available Parts:

(Listed by Manufacturer Part Number)

	Probes:	Description:
	H4000PA	M4S Probe
	H40422LA	5S-02 Probe
	H40422LB	7S-02 Probe
	H4901PC	10S Probe without Yoke

	Common Parts:	Description:
	2379846	Probe & Mux Assy.
	2409723	Operator Panel w/o ECG (Keyboard Assy')
	2410809	LCD Panel kit
	2416155	BEP Service Kit
	2417221	External Battery Charger
	5183459	Battery pack for Ve BT07
	5183684	LOGO Kit for Ve
	5183906	security lock
	5195546	isolation cart 250V T 5A Fuse for transformer
	5196783	AC/DC adapter with clamp filter
	5199342	Keyboard ASSY for Ve BT07
	5199553	LCD Front cover for Vivid e BT07
	5199973	Keyboard Cover ASSY for Ve BT07
	5212061	LCD Back cover assy for Vivid e BT07
	5212340	Menu Panel ASSY for Vivid e BT07
	5224534	Keyboard PWA kits for Ve
	5234933	Handle Kits for Ve BT07
	5244918	LCD Service Assy for Ve BT07
	5251801	Twin LCD panel for Service
	5255230	Hard Disk without Program Assy
	5264324	Netgear wireless adapter WG111v2 installation kit
	066E3101	V7 AN KEYBOARD UNIVERSAL,ENGLISH
	2404903-2	TX64 PWA
	2404906	RX64 PWA
	2406733	TMST2TX PWA
	5124847-2	Twin CWD Assembly
	5124847-3	CWD PWA
	5145407	MPN:CMOS Battery_CMOS Battery
	5148768	Left Fan ASSY
	5148771	Probe Connector ASSY
	5151233-2	DVD-RW USA Kit
	5151234-2	DVD-RW EU Kit
	5151236	USB 3 pedal Foot Switch
	5155004	TWin Speaker kits
	5155166	LCD and Handle Hinge kits
	5155175	CPU module kits for Twin
	5159620	512MB DDR Memory
	5160471	Trackball ASSY
	066E0339	ATI FireGL V7200 256MB PCI-X DVI
	066E0523	HARD DISK 80GB SATA BEP4 HDD FRU
	066E0677	MO Drive 9.1 GB 5.25" Ext 1 E
	066E0677	MO Drive 9.1 GB 5.25" Ext
	066E0698	DVD DRIVE
	066E2301	V7 OP MAIN CONTROLLER BOARD
	066E2302	V7 OP LCD WITH CONTROLLER BOARD
	066E2311	V7 OP MAIN CONTROLLER BOARD VER.2
	066E2312	V7 OP LCD MODULE
	2354258-7	TR32 Board
	2355880-4	RFI Board
	2376515-2	Hard Disk Module w/o SW
	2378947-2	AC Adaptor (ROW)
	2378963-2	Internal Battery Pack
	2404028-7	BEP CMOS BATTERY
	2404652-5	TRACKBALL
	2406640-2	TMST PWA
	2410247-2	AC Distribution Assy 220-240V
	2415041-2	Front Wheels KIT
	2415042-2	Rear Wheels KIT
	2416318-2	Medical Grade 5V PS
	2416397-2	DC Power Supply LV and HV
	2417993-2	DVD-RW
	2421141-2	DVD/CD-RW 1 E Same as used on Vivid i
	5147731-2	LCD Inverter ASSY
	5162038-3	Twin Charger Board and Cable kits
	5168040-2	SanDisk USB Stick 1G
	5173403-3	Right Fan ASSY
	5174862-5	HDD with program Assy for Ve R4.0.4
	5177329-2	Isolation Cart (220V)
	5252489	NSK C4B01 AN Keyboard for Ve BT07
	FB200165	FEC-II
	FB200574	POWER, TX
	FB200991	IMP-2B
	FC200054	RFI
	FC200057	RX128-4
	FC200230	BACKPLANE
	FC200375	TX128-4, TX-BOARD FOR RFI
	FC200386	POWER, TX
	FC200386	POWER, TX (TXPS)
	FC200394	RFT1
	FC200459	TX128-5
	FC200805	PATIENT IO MODULE
	FC200817	BEP4 WITHOUT MO DRIVE
	FC200936	LCD MONITOR ASSEMBLY
	FD200041	POWER, DC
	FD200041	POWER SUPPLY DC
	FD200041	POWER, DC
	S2354258-7	TR32 Board 1 E Same as Vivid i
	S2376515	Hard Disk Module w/o SW 1 N
	S2378963-3	Internal Battery Pack 1 N Same as used on Vivid i
	S2403248-4	DC/DC Module 1 N
	S2416155	BEP Service Kit 1 N Same as used on Vivid i
	S2418272-3	PI Board 1 N 1,
	S2418295	RFI Board AM 1 N
	S2418521	Fan Module Assy. 1 N
	S2418523-2	VS6 Monitor 17" Arm Assy. 1 N Vivid S6 only
	S2418525-2	VS6 Monitor 17" 1 N Vivid S6 only
	S2418592	PS Board VS6 1 N Vivid S6 only
	S2419681-4	Distribution Module (DIB) 1 N
	S2420671	Wheel Brack Locking 2 N
	S2420672	Wheel Swivel Locking 2 N
	S2421617	Key Cap Kit 1 N
	S2421618	KB A/N Keyboard 1 N
	S2421619	KB Trackball 1 N
	S2421620	KB TGC Slides 1 N
