Product Information:

Manufacturer: GE

Description:

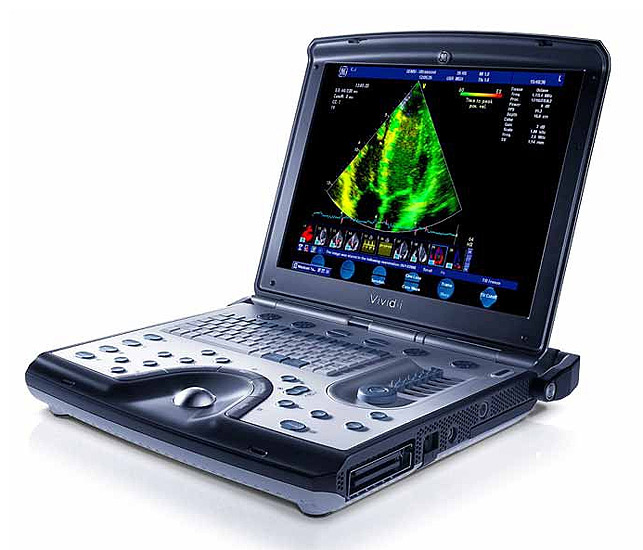

GE Healthcare's new Vivid i is the world's first miniaturized cardiovascular ultrasound system to provide high-performance, full-featured imaging in a lightweight design.

The GE Vivid i addresses one of the biggest challenges in cardiovascular care - access to complete, real-time diagnostic information. The new system expands the reach of echocardiography by offering all the functionality and high performance of full-featured premium scale systems - but in a completely portable and wireless design that weighs 30 times less.

GE developed Vivid i by miniaturizing the components of a premium echocardiography system weighing more than 180 kilograms to provide a portable system weighing less than five kilograms. Vivid i features wireless functionality, enabling physicians to transfer files instantly from the system to other physicians for consultation, or to the patient's bedside so that they can be more informed and involved in their healthcare decisions.

Performance:

• Phased-array transducer technology for 2D, color and Doppler imaging.
• Multiple focal zones help optimize image quality.
• Extremely high frame rates, enhanced color flow and color angio assist in acquiring extremely low- velocity flows.
• 5 levels of Coded Octave Harmonics help you obtain quality images from difficult-to-image patients.
• LVO contrast option, based on 2D Harmonic imaging with Coded Phase Inversion, aids in scanning your most challenging patients.
• Triplex and duplex display capabilities to simplify Doppler acquisitions.
• Automatic Tissue Optimization (ATO) option helps you obtain quality images faster by automatically adjusting the image settings to optimize images.
• Complete measurement and analysis worksheets and reports are tailored to each exam.
• Live Anatomical M-Mode corrects for off-axis orientation in situations where the heart is not positioned or shaped normally.
• Tissue Doppler Imaging provides real-time Doppler spectral information for specified myocardial motion, allowing for instantaneous tissue velocity measurements.
• Over 40 gigabyte disk space for archive storage of patient
• Full DICOM connectivity with embedded raw data speeds exams by allowing you to perform post-exam quantitative analyses at your convenience on the integrated EchoPAC or optional EchoPAC Dimension workstation.
• MPEGvue option compresses images into compact file sizes. These high quality images can be transferred to any compatible media or network, or e-mailed directly for viewing.
• eVue option permits remote interactive monitoring of images on any PC, via wired or wireless network communication, for fast and convenient consultations.
• Lightweight, 5 kg package makes system transport fast and easy - simply strap on your back or carry to your patients.
• Ultra-small footprint reduces operational costs by eliminating the need for special rooms, lifts or vans.
• Rechargeable battery provides up to 1.0 hour of full scan operation

Capabilities:

Cardiac, Vascular

Available Transducers:

3S-RS Phased Array Cardiac probe, P2D-RS NON Imaging CW doppler probe, 8L-RS Linear Vascular probe, 6T-RS TEE probe

Available Parts:

(Listed by Manufacturer Part Number)

	Probes:	Description:
	H4000PD	3S-RS Probe
	H4000PC	5S-RS Probe
	H4000PE	7S-RS Probe
	H4000PF	10S-RS Probe
	H45531MZ	6T-RS TEE Probe ADULT
	H45521CK	Adult TEE Scanh. Protect.Cover
	H45521CB	TEE Clip-On Biteguard S
	H45511EE	TEE Clip-On Biteguard L
	H45521JH	TEE Conventional Bite Guard Adult
	H45531HS	Bite Hole Indicator
	H45021KP	TEE Adapter for 6T and 9T RS probes
	H45531YM	9T-RS
	H45541RN	Pediatric TEE Scanh. Protect.Cover
	H45521JG	Pediatric TEE Biteguard with strap
	H45531HS	Bite Hole Indicator
	H45021C	P2D-RS PEDOF Probe
	H45021CA	P6D-RS PENCIL Probe
	H40402LT	8L-RS Probe
	H4000SR	4C-RS Probe
	H40402LS	8C-RS
	H40402LY	12L-RS Probe

	Common Parts:	Description:
	2379846	Probe & Mux Assy.
	2409723	Operator Panel w/o ECG (Keyboard Assy')
	2410809	LCD Panel kit
	2416155	BEP Service Kit
	2417221	External Battery Charger
	5183459	Battery pack for Ve BT07
	5183906	Security lock
	5195546	Isolation cart 250V T 5A Fuse for transformer
	5196783	ACDC adapter with clamp filter
	5199342	Keyboard ASSY for Ve BT07
	5199553	LCD Front cover for Vivid e BT07
	5199973	Keyboard Cover ASSY for Ve BT07
	5212061	LCD Back cover assy for Vivid e BT07
	5212340	Menu Panel ASSY for Vivid e BT07
	5224534	Keyboard PWA kits for Ve
	5234933	Handle Kits for Ve BT07
	5244918	LCD Service Assy for Ve BT07
	5251801	Twin LCD panel for Service
	5255230	Hard Disk without Program Assy
	5264324	Netgear wireless adapter WG111v2 installation kit
	066E3101	V7 AN KEYBOARD UNIVERSAL,ENGLISH
	2404903-2	TX64 PWA
	2404906	RX64 PWA
	2406733	TMST2TX PWA
	5124847-2	Twin CWD Assembly
	5124847-3	CWD PWA
	5145407	MPN:CMOS Battery_CMOS Battery
	5148768	Left Fan ASSY
	5148771	Probe Connector ASSY
	5151233-2	DVD-RW USA Kit
	5151234-2	DVD-RW EU Kit
	5151236	USB 3 pedal Foot Switch
	5155004	TWin Speaker kits
	5155166	LCD and Handle Hinge kits
	5155175	CPU module kits for Twin
	5159620	512MB DDR Memory
	5160471	Trackball ASSY
	066E0339	ATI FireGL V7200 256MB PCI-X DVI
	066E0523	HARD DISK 80GB SATA BEP4 HDD FRU
	066E0677	MO Drive 9.1 GB 5.25" Ext 1 E
	066E0677	MO Drive 9.1 GB 5.25" Ext
	066E0698	DVD DRIVE
	066E2301	V7 OP MAIN CONTROLLER BOARD
	066E2302	V7 OP LCD WITH CONTROLLER BOARD
	066E2311	V7 OP MAIN CONTROLLER BOARD VER.2
	066E2312	V7 OP LCD MODULE
	2354258-7	TR32 Board
	2355880-4	RFI Board
	2376515-2	Hard Disk Module w/o SW
	2378947-2	AC Adaptor (ROW)
	2378963-2	Internal Battery Pack
	2404028-7	BEP CMOS BATTERY
	2404652-5	TRACKBALL
	2406640-2	TMST PWA
	2410247-2	AC Distribution Assy 220-240V
	2415041-2	Front Wheels KIT
	2415042-2	Rear Wheels KIT
	2416318-2	Medical Grade 5V PS
	2416397-2	DC Power Supply LV and HV
	2417993-2	DVD-RW
	2421141-2	DVD/CD-RW 1 E Same as used on Vivid i
	5147731-2	LCD Inverter ASSY
	5162038-3	Twin Charger Board and Cable kits
	5168040-2	SanDisk USB Stick 1G
	5173403-3	Right Fan ASSY
	5174862-5	HDD with program Assy for Ve R4.0.4
	5177329-2	Isolation Cart (220V)
	5252489	NSK C4B01 AN Keyboard for Ve BT07
	FB200165	FEC-II
	FB200574	POWER, TX
	FB200991	IMP-2B
	FC200054	RFI
	FC200057	RX128-4
	FC200230	BACKPLANE
	FC200375	TX128-4, TX-BOARD FOR RFI
	FC200386	POWER, TX
	FC200386	POWER, TX (TXPS)
	FC200394	RFT1
	FC200459	TX128-5
	FC200805	PATIENT IO MODULE
	FC200817	BEP4 WITHOUT MO DRIVE
	FC200936	LCD MONITOR ASSEMBLY
	FD200041	POWER, DC
	FD200041	POWER SUPPLY DC
	FD200041	POWER, DC
	S2354258-7	TR32 Board 1 E Same as Vivid i
	S2376515	Hard Disk Module w/o SW 1 N
	S2378963-3	Internal Battery Pack 1 N Same as used on Vivid i
	S2403248-4	DC/DC Module 1 N
	S2416155	BEP Service Kit 1 N Same as used on Vivid i
	S2418272-3	PI Board 1 N 1,
	S2418295	RFI Board AM 1 N
	S2418521	Fan Module Assy. 1 N
	S2418523-2	VS6 Monitor 17" Arm Assy. 1 N Vivid S6 only
	S2418525-2	VS6 Monitor 17" 1 N Vivid S6 only
	S2418592	PS Board VS6 1 N Vivid S6 only
	S2419681-4	Distribution Module (DIB) 1 N
	S2420671	Wheel Brack Locking 2 N
	S2420672	Wheel Swivel Locking 2 N
	S2421617	Key Cap Kit 1 N
	S2421618	KB A/N Keyboard 1 N
	S2421619	KB Trackball 1 N
	S2421620	KB TGC Slides 1 N
