Product Information:

Manufacturer: Siemens

Description:

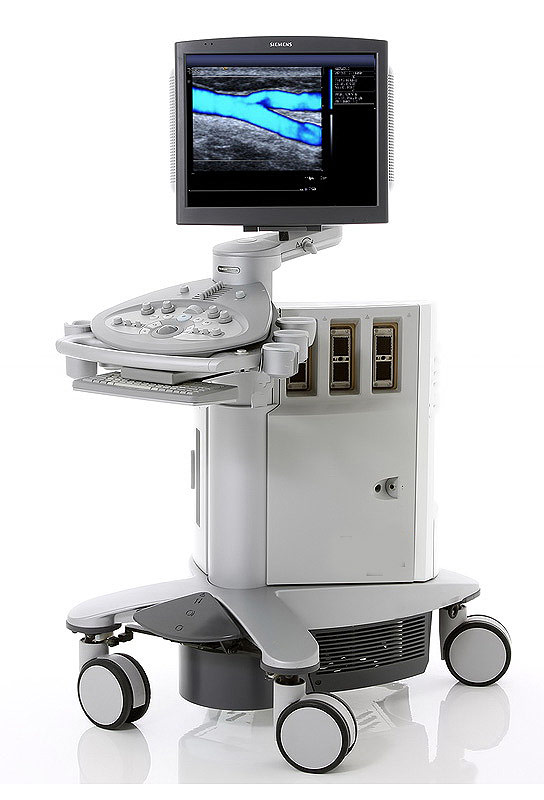

The Siemens Antares ultrasound represents the complete ultrasound solution for your clinic or office. It is ready to perform any exam on any patient. The Antares delivers outstanding image quality, connectivity and scalability in a unique ergonomic design. MISA Beam formation with High-Density Active Aperture, Combined with Patented Precision Up-Sampling, Deliver ultra-fine analysis and digitization of raw signal data. Ensemble™ Tissue Harmonic Imaging for improved contrast resolution. Multi-Dimensional Image Processor resulting in a revolutionary new ultrasound workstation.

The ergonomic of the Siemens Antares are designed to enhance operator interaction and increase workflow management. 15" high resolution, progressive scan monitor and control panel are user height adjustable for variable scanning positions. Repositional wrist-rest helps to reduce operator fatigue.

Performance:

• 2D
• Lightweight multiple frequency and Multi-D(tm) Array Transducers provide optimal slice thickness for a wide variety of applications
• Wideband Multi Hertz (tm) multiple frequency imaging expands versatility by covering a broader application range with each transducer
• Virtual Format Imaging steers and explains the linear image display for greater information
• Triplex mode
• Biopsy software
• Integrated read/write CD R Drive
• Includes DICOM Print And Store
• B/W SIESCAPE Software
• Color SIESCAPE (tm) Software Option
• Tissue Equalization Technology
• 3-Scape Imaging
• Cadence Contrast Agent Imaging
• SIECLEAR
• CLARIFY VE Option

Capabilities:

3D, Live 3D/4D, Breast Imaging, Cardiac, Vascular, Breast Imaging, OB/GYN, General Radiology

Available Transducers:

CH4-1, CH 6-2, PH4-1, PX4-1, P10-4, EC 9-4, VF10-5, VFX9-4, VFX13-5, VF 7-3

Available Parts:

(Listed by Manufacturer Part Number)

	Probes:	Description:
	4838848	VF13-5 Transducer
	4838863	VFX13-5 Transducer
	8264577	V5M Transducer, Shielded
	7854149	PX 4-1, Transducer
	7481919	C5F1-Transducer
	7481935	C7F2-Transducer
	7472256	CH 4-1 Transducer
	7465672	CH6-2 Transducer
	7466910	PH4-1 Transducer
	5936237	VFX9-4 Transducer
	4839473	VF10-5 Transducer
	4839507	VF7-3 Transducer
	4839549	EC9-4 Transducer
	5936237	VFX9-4 Transducer
	7472272	P10-4 Transducer

	Common Parts:	Description:
	8264577	V5M Transducer, Shielded
	7298289	Assembly,CARD CAGE
	7298289	Assembly,CARD CAGE
	7302149	Assembly, input/ output module
	7303295	Assembly,TI board, 4D
	7303659	Assembly, digital power supply (PSD)
	7306041	PWA,Assembly,VIBRD/D
	7470490	PWA,Assembly,XMIT RCV BD,TRB/H,ANTARES
	7472421	PWA,Assembly,BE_P2.61 BOARD
	7475028	PWA,Assembly,XMIT RCV BD,TRB/I,ANTARES
	7476810	PWA,Assembly,RC BOARD,RCB/L
	7478212	AC Tray
	7481968	fourSight-4D-Schallkopf EV9F4
	7846681	POWER SUPPLY,ANALOG (PSA)
	10032069	Monitor, Flat Panel , ANT-4
	10033337	Assembly, Control Panel, Antares, ,A3.5
	10033338	OEM, Monitor, Color SVGA 15
	10033339	Mochida Monitor, Japan Only ,A3.5
	10035299	RM165 Antares 2GB 2.8G P650 Cfg1
	10035801	PWA, Assembly, VIBRD/E, Antares
	10037087	Assembly, CB Board, Antares
	10037776	RM165, Antares, 3GB 2.8G Cfg4
	10040752	Assembly/2, TI Board 4D

For additional informaton about this product, please call 866-975-3316 or fill out our contact form today!
