Product Information:

Manufacturer: Toshiba

Description:

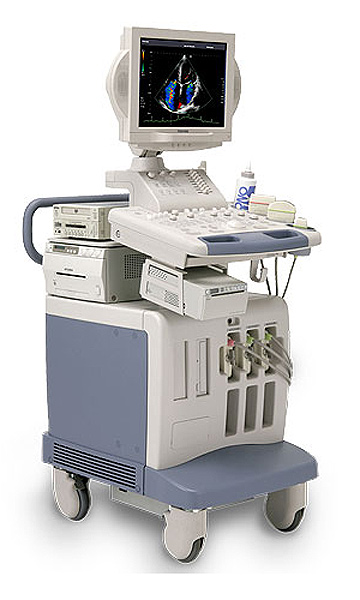

Toshiba Nemio XG is a fully digital, color, premium imaging system. It is compact, lightweight and portable, yet engineered with the latest technologies. The system is upgradable to help further expand diagnostic capabilities and enhance clinical insight.

The Nemio XG offers image quality equal to that of a high-end system, providing sharp, crisp images that improve visualization of even the smallest details. The Nemio XG's customizable control console and interface ensure a streamlined and flexible workflow, and complete network connectivity speeds information delivery and expedites a higher quality of patient care.

Nemio XG offers excellent 2-D imaging and color-flow imaging as well as pulsed-wave and continuous-wave Doppler.

Performance:

• ApliPure the next generation of real-time compound imaging technology using both spatial and frequency compounding simultaneously to deliver images of outstanding clarity and detail resolution.
• Quick Scan - For one-button optimization of the 2-D image. Equalizes thousands of image points, forming an image with balanced tissue brightness throughout the field of view.
• Quad Signal Processing provides high temporal resolution without sacraficing image quality. Processes four times more raw data in Color Doppler imaging, resulting in faster frame rates.
• Advanced Dynamic Flow (ADF) adds superior resolution to Color Doppler and depicts even tiny vessels or flow around plaques with outstanding accuracy and detail.
• SonoSet - Carry out routine exams by executing freely programmable protocols simply with the touch of a button. SonoSet also combines multiple operations into a single keystroke. This unique tool can make standard scans easier and a lot faster.
• Free Cursor -This function allows the user to select and change items on the monitor. Up to four items can be register as a quick launcher also to simplify workflow.
• True Triplex Imaging -Implement 2-D, color-flow mapping and pulsed-wave Doppler modalities simultaneously while maintaining a high degree of temporal resolution.
• Smart Trace - Automatically traces Spectral Doppler waveforms yielding velocity measurements which are accurate, reproducible and reliable.
• Porgrammable Measurements - Sonographers can program their own measurements for all applications in addition to the standard measurement package.

Capabilities:

Tee, Stress Echo, Small Parts, OB/GYN, Musculoskeletal, Cardiac, Abdominal

Available Transducers:

Sector heart PSM-25AT, Sector heart PSM-30BT, Sector heart PSM-37AT, Sector pediatric heart PSM-50AT, Sector pediatric heart PSM-70AT, Sector abdomen PSM-37CT, Sector TCD PSM-20CT, Convex abdomen PVM-375AT, Convex cardiac PVF-381MT, Convex abdomen PVF-575AT, Convex neonatal head PVM-662AT, Linear vascular PLM-503AT, Linear peripheral vascular PLM-703AT, Linear small parts PLM-805AT, Linear small parts, breast PLM-1204AT, Linear MSK intraoperative PLM-1202S, Linear abdomen (biopsy) PLF-308P, TEE PEF-510MA, TEE PEF-510MB, TEE pediatric PEM-508SC, TEE pediatric PEM 508MA, Pencil PC-19M, Pencil PC-50V, Endocavity PVF-620ST, Endocavity OB/GYN PVM-621VT, Endocavity OB/GYN PVM-651VT, Endocavity biplane PVM-740RT, Endocavity biplane PVL-715RT, 4D OB PVM-375MV, Annular array SMA-736SA, Laparoscopic Convex PVM-787LA, Laparoscopic Linear PEF-704LA, Intraoperative Convex PVF-738H, Intraoperative Convex PVF-738F, Intraoperative Convex PVF-745V

Available Parts:

(Listed by Manufacturer Part Number)

	Probes:	Description:
	PVM-375AT	Convex Transducer
	PVM-662AT	Convex Transducer
	PVF-381MT	Adult Heart/Abdomen Transducer
	PVM-651VT	TV Transducer
	PVF-620ST	Convex Transducer
	PVM-740RT	TR Convex/Convex Transducer
	PVL-715RT	Rectal Biplane Transducer
	PLM-703AT	Linear Transducer
	PLM-805AT	Linear Transducer
	PLM-503AT	Linear Transducer
	PLM-1202S	Linear Transducer
	PLM-1204AT	Linear Transducer
	PSM-30BT	Adult Heart Transducer
	PSM-50AT	Sector Transducer - Cardiac
	PSM-20CT	Sector Transducer
	PSM-37CT	Sector Transducer
	PSM-70AT	Sector Transducer - Cardiac
	PEF-510MA	Transesophagael Transducer - Cardiac
	PLF-308P	Linear Transducer
	PVF-738H	Convex Transducer
	PVF-738F	Convex Transducer
	PVF-745V	Convex Transducer
	PC-19M	Pencil Transducer - Cardiac
	PC-50V	Pencil Transducer - Peripheral Vascular
	PVM-375MV/AE	4D Transducer

	Common Parts:	Description:
	BSM31-3075	PALM
	BSM31-3076	KBDL
	BSM31-3078	SKBD
	BSM31-6157	LSPS
	BSM31-6160	PCCW
	BSM31-6167	BCDP
	BSM31-6169	ECRX
	BSM31-6170	ETXR
	BSM31-6171	AVCT
	BSM31-6172	AVPN
	BSM31-6410	P156
	BSM31-6413	FERX64
	BSM31-6559	PCXX-3P
	BSM31-6953	SWRG
	BSM31-6954	LNFL
	BSM31-6956	CPCT
	BSM31-6957	LCD Monitor
	BSM31-6958	DVDV
	BSM31-6961	HDDV
	BSM31-7955	ADMB /W HDD

For additional informaton about this product, please call 866-975-3316 or fill out our contact form today!
